Pre-Engineered Industrial Fire System CAD Drawings

Posted by on July 21, 2015

Do you install pre-engineered industrial fire systems in paint spray booths, open face booths or other industrial applications?  Then you probably need to provide a complete set of drawings to the AHJ to obtain an installation permit.

That’s where we come in, FireSystemDrawings.com can help you with a professional set of drawings for your installation project.

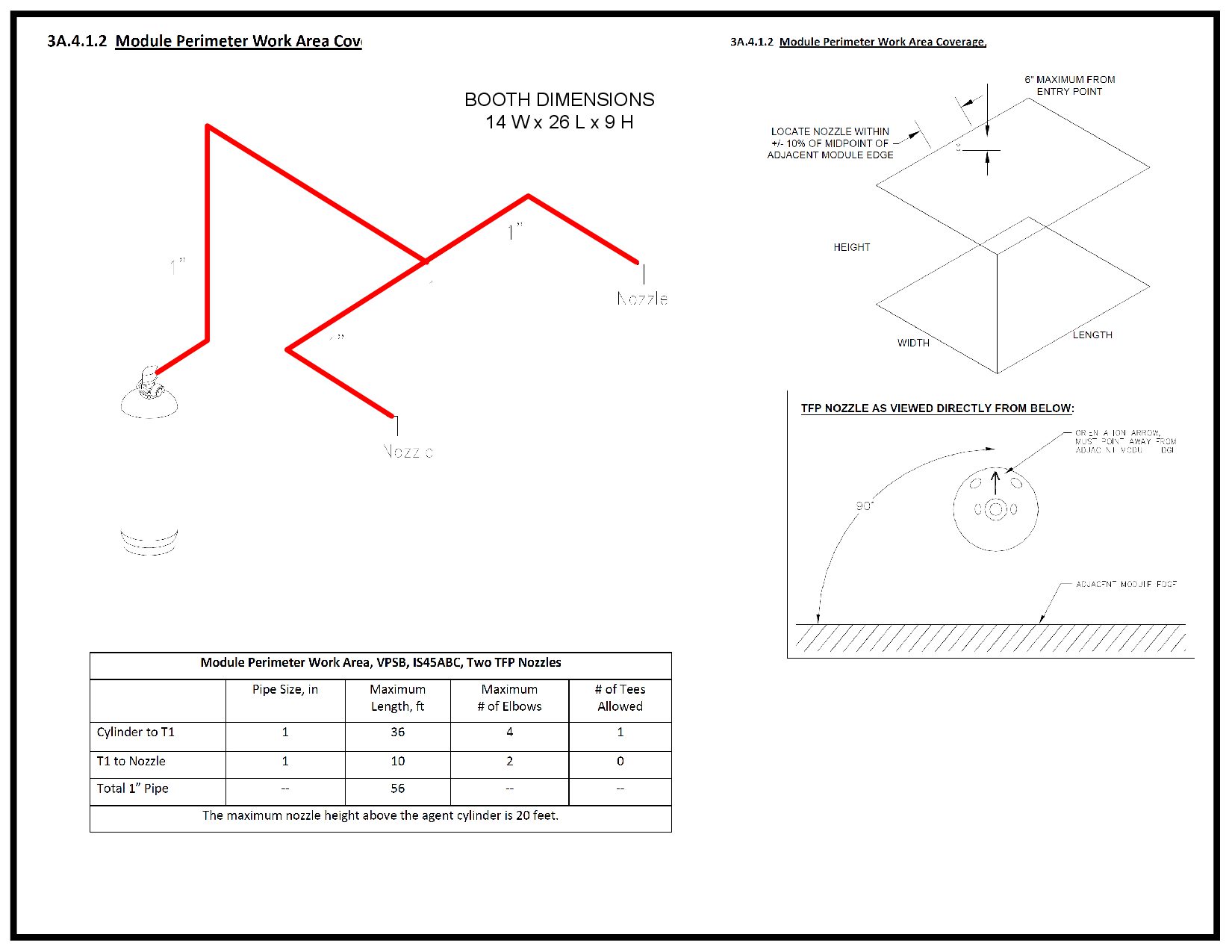

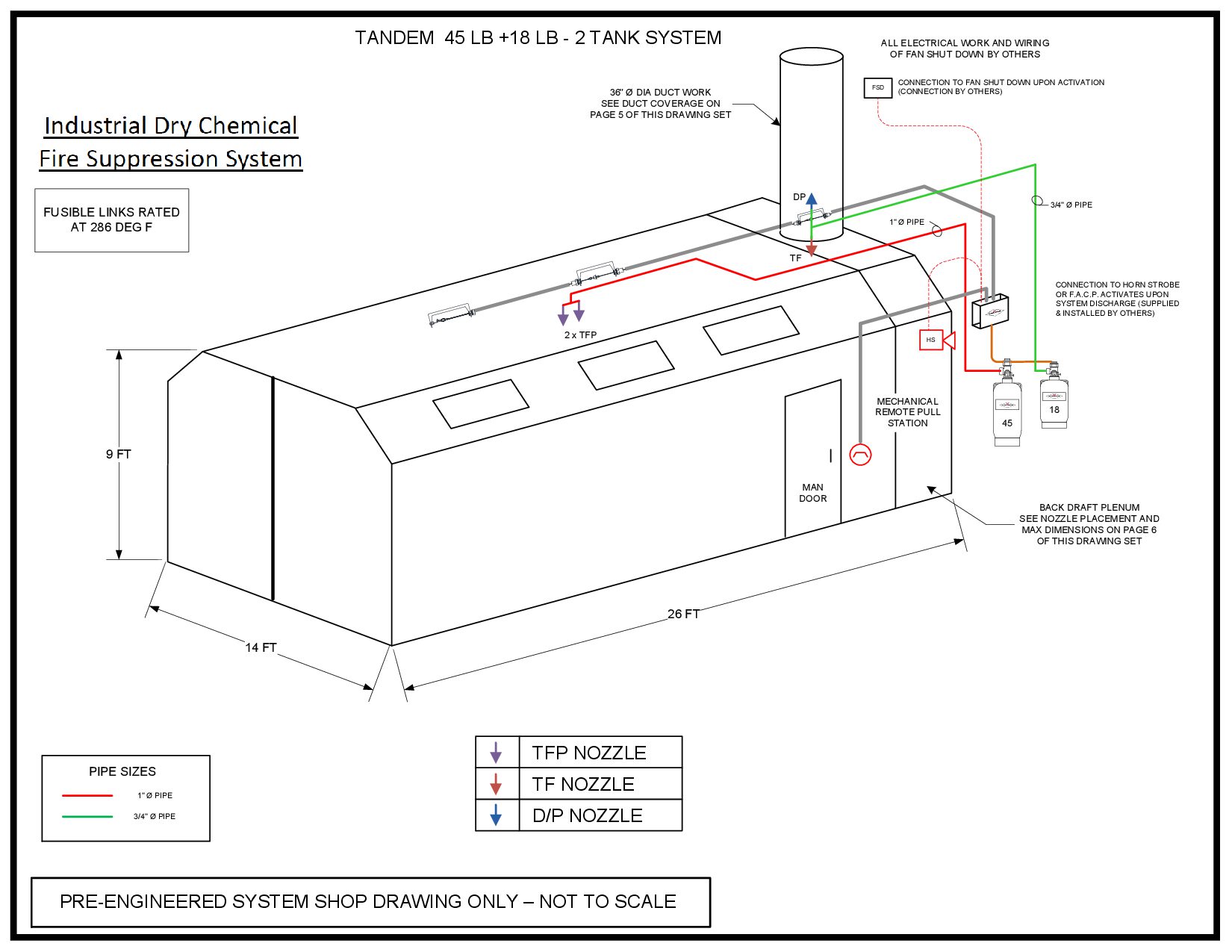

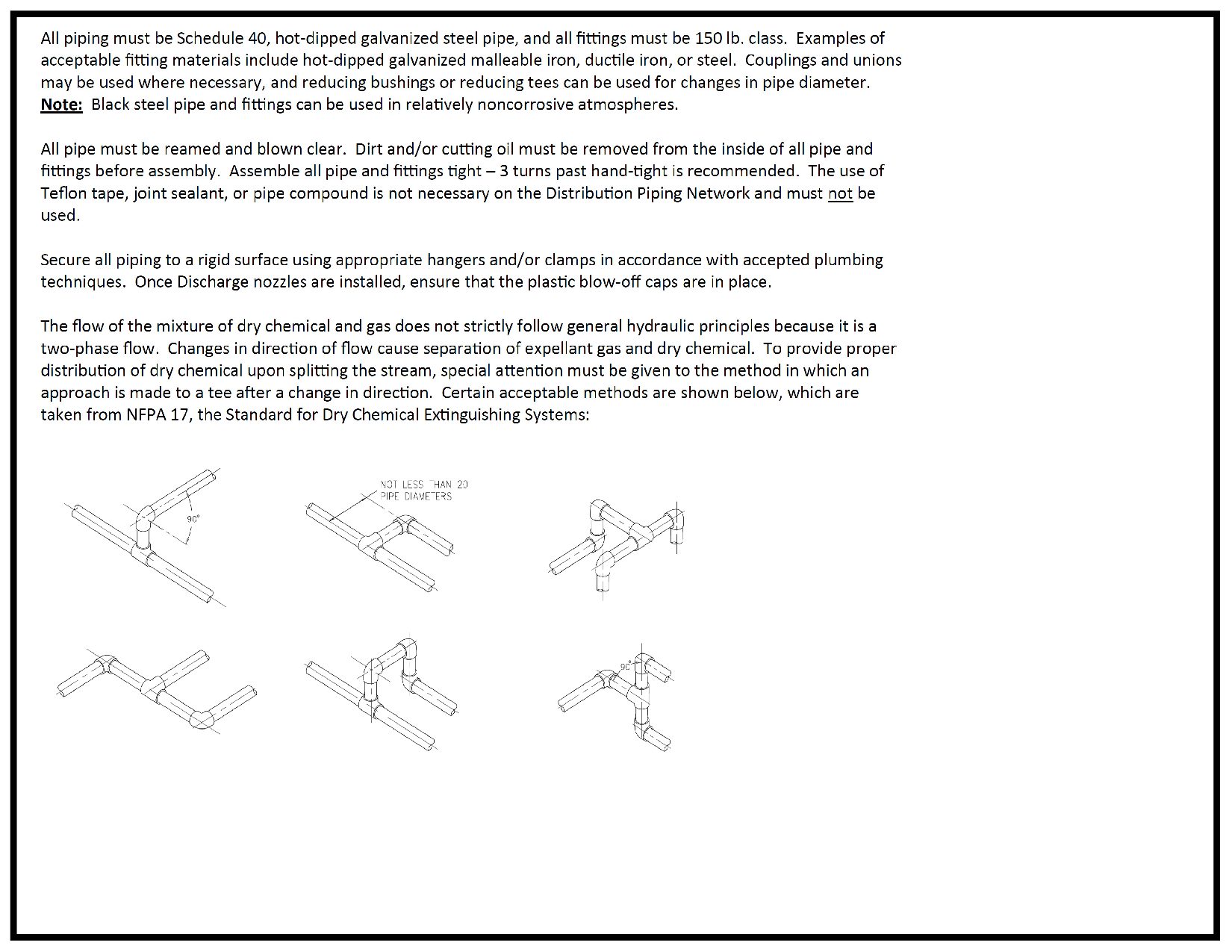

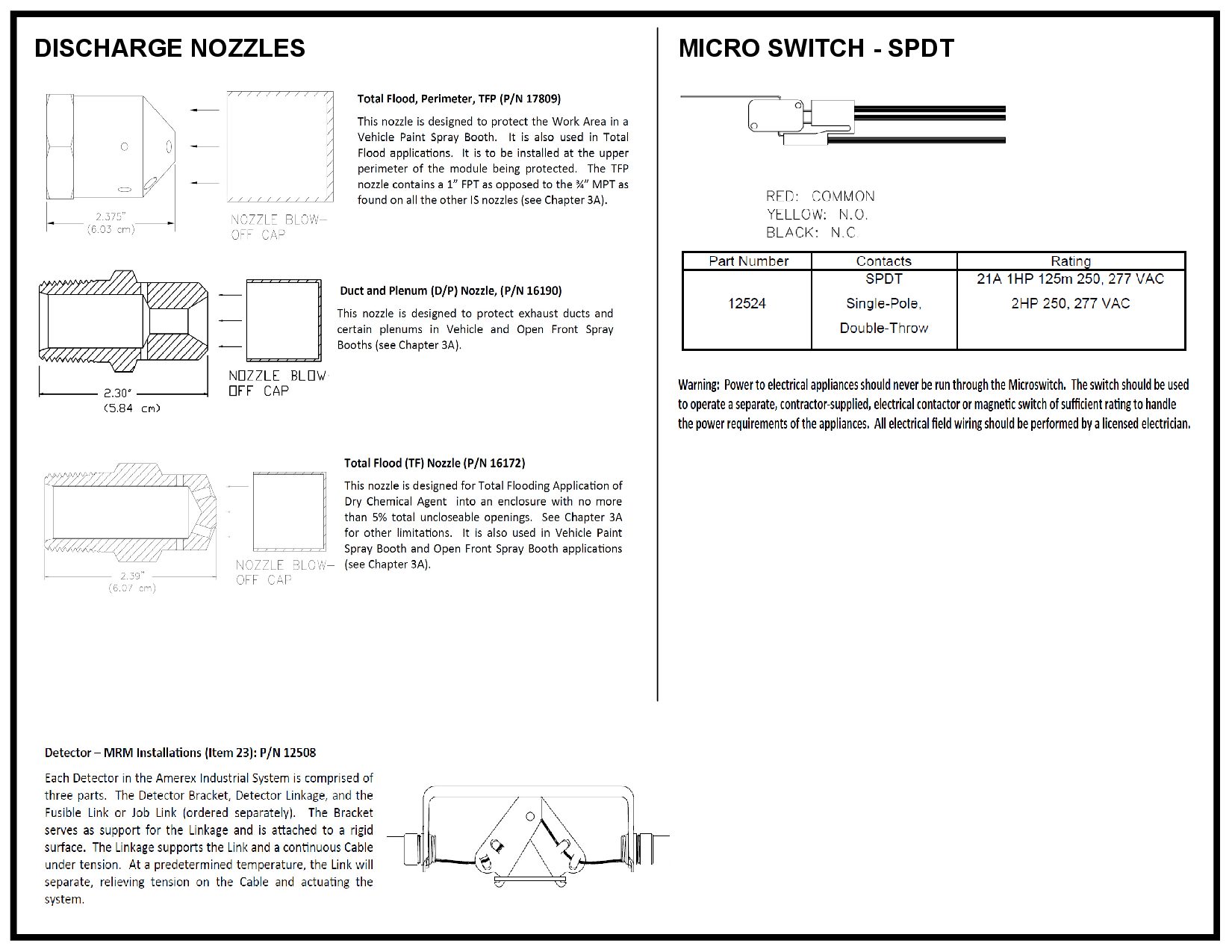

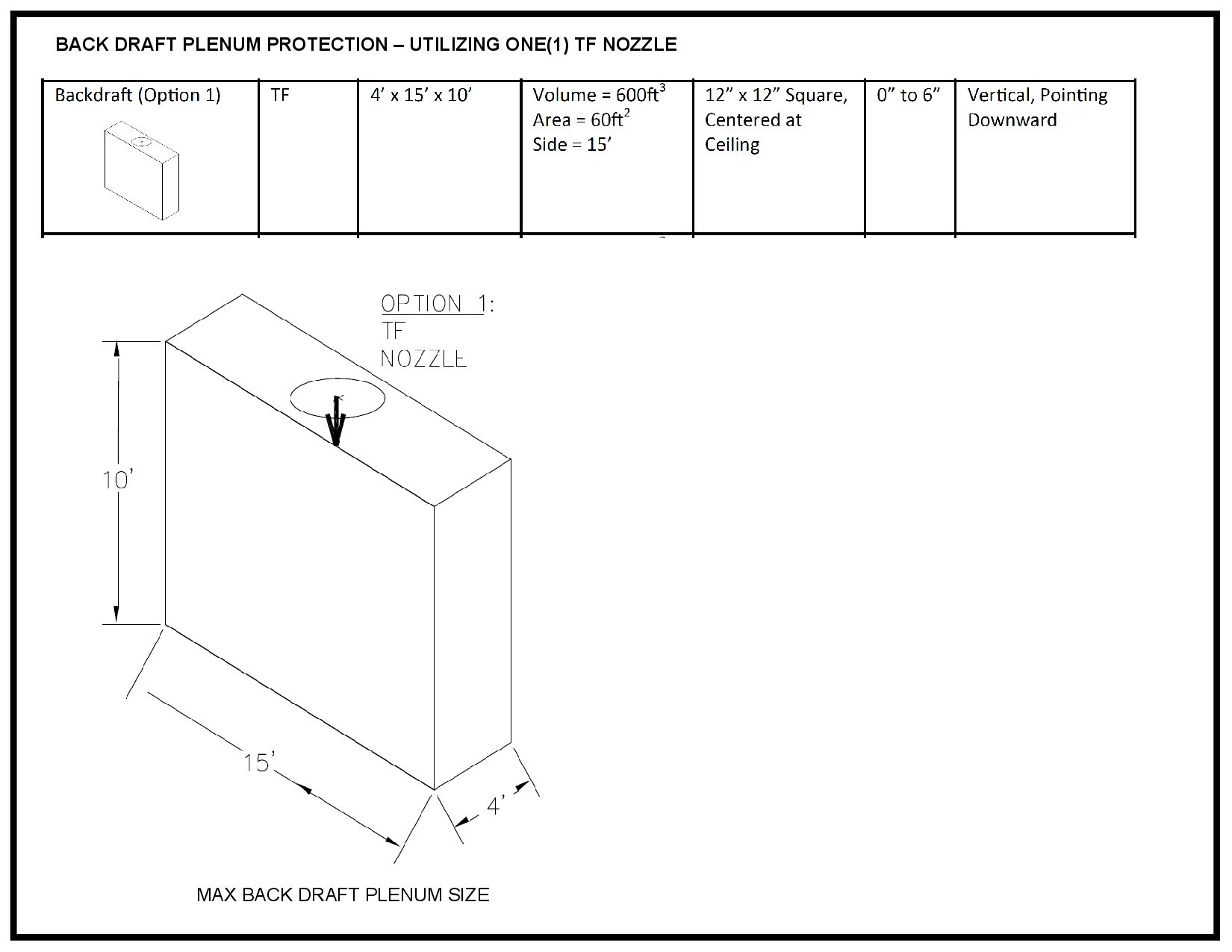

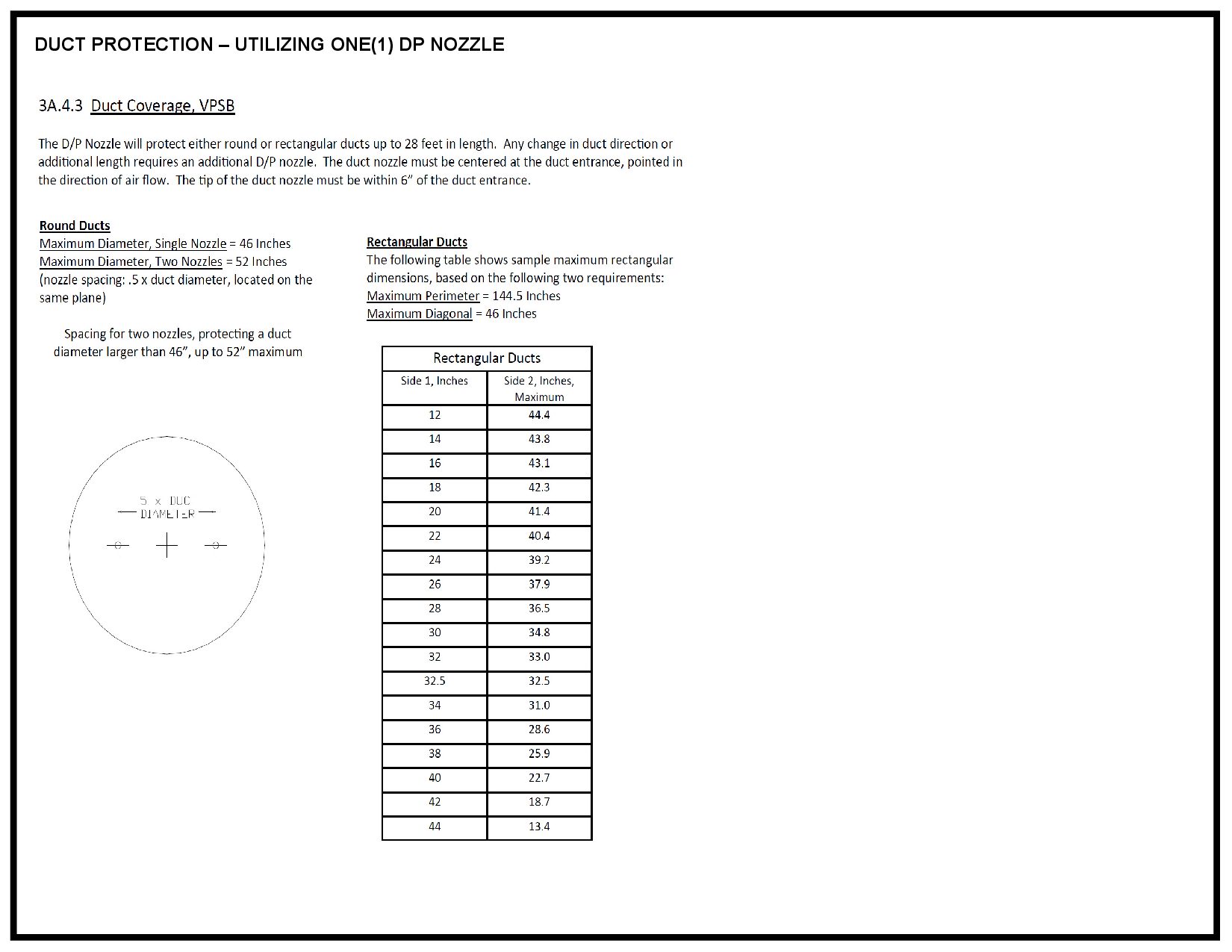

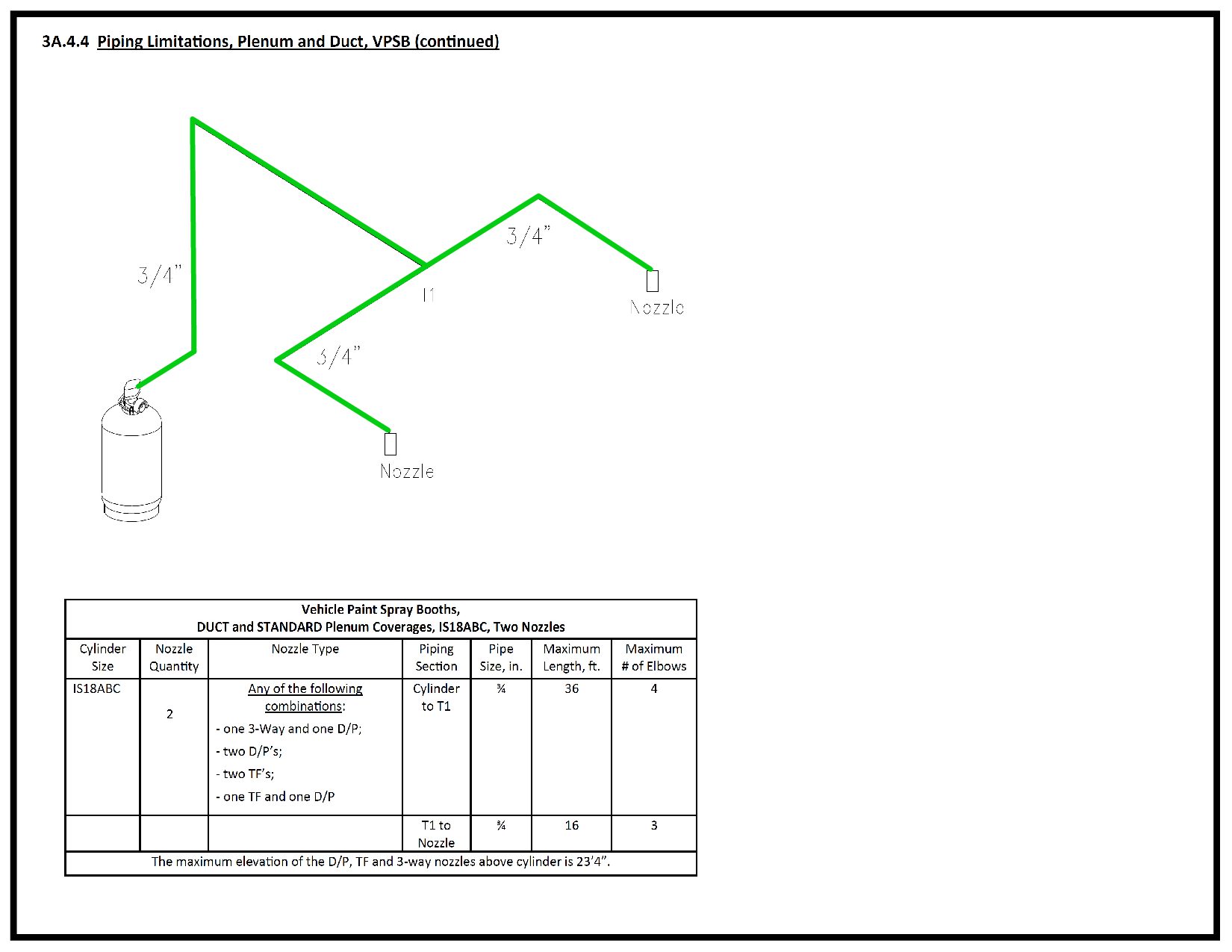

Here’s a sample set to help you visualize what we can provide you with

Note: we’ve taken out some of the details to keep the files as small as possible and let the images load as fast as possible.

Or you can download the entire sample drawing here: SAMPLE INDUSTRIAL SPRAY BOOTH
